The 90 degree elbow is one of the most commonly used pipe fittings in various industries for fluid and gas conveyance. Designed to change the direction of flow in piping systems by 90 degrees, this fitting is vital in complex piping layouts across chemical plants, oil refineries, water treatment facilities, HVAC systems, and marine applications. Understanding the technical aspects, types, materials, standards, and applications of a 90 degree elbow is critical for engineers, procurement teams, and contractors who are tasked with specifying or installing piping components.

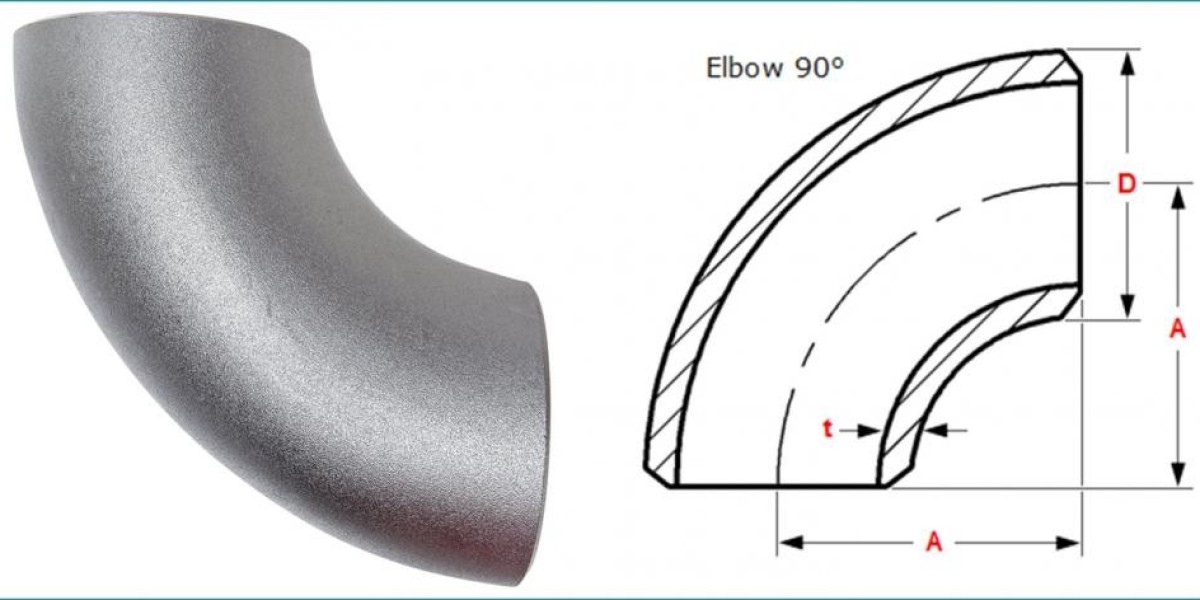

What is a 90 Degree Elbow?
A 90 degree elbow is a pipe fitting installed between two lengths of pipe (or tube) to enable a change in flow direction at a right angle. It offers directional flow, helps in avoiding obstructions, and facilitates optimal layout planning in limited spaces.
There are two major variations of the 90 degree elbow based on the center-to-end distance:
Long Radius (LR) 90 Degree Elbow: The radius of curvature is 1.5 times the nominal pipe size, reducing pressure drop and turbulence. Common in process piping systems.
Short Radius (SR) 90 Degree Elbow: The radius is equal to the nominal pipe size, making it ideal for tight spaces, although it creates more pressure loss due to a sharper turn.
Technical Specifications
Nominal Pipe Sizes (NPS): ½” to 48”
Schedules: SCH 10 to SCH XXS
Radius Types: Long radius (1.5D) and short radius (1.0D)
Connection Types: Butt-weld, socket weld, threaded, and push-fit
End Preparation: Beveled ends for butt-weld elbows as per ASME B16.25
Pressure Ratings: Conforms to ANSI/ASME B16.9, B16.11, or B16.28 depending on type
Material Grades
The material selection depends on the media being transported, pressure-temperature requirements, and environmental conditions. Common materials include:
Carbon Steel:
ASTM A234 WPB
A420 WPL6 (for low-temperature service)
Stainless Steel:
ASTM A403 WP304, WP316, WP321
Resistant to corrosion and high-temperature oxidation
Alloy Steel:
ASTM A234 WP5, WP9, WP22 (used in power plants and high-temp service)
Duplex and Super Duplex Steel:
UNS S31803, S32750 — ideal for aggressive chloride-bearing environments
Nickel Alloys:
Inconel, Hastelloy, Monel — used in chemical processing, marine, and aerospace industries
Copper and Brass:
For plumbing, HVAC, and low-pressure applications
Manufacturing Methods
The manufacturing of 90 degree elbows can be done using several methods:
1. Hot Forming:
Heated pipe is pressed or bent over a die to form the elbow shape.
Common in large-diameter or thick-wall fittings.
2. Cold Forming:
Elbows formed at room temperature using hydraulic presses or bending machines.
Suitable for thin-wall and small-diameter elbows.
3. Mandrel Method (for Seamless Elbows):
Uses a mandrel to control the inner diameter and reduce thinning during bending.
4. Welded Elbows:
Plates or pipes are cut and welded to shape; mostly used for large-diameter custom elbows.
Post-forming treatments include heat treatment (normalizing or annealing), pickling and passivation, non-destructive testing (NDT), and dimensional verification using templates or coordinate measuring machines (CMM).
International Standards for 90 Degree Elbow
ASME B16.9 – Factory-made wrought buttwelding fittings
ASME B16.11 – Forged fittings for socket weld and threaded
ASTM A403 / A234 / A815 / B366 – Material standards for various grades
DIN 2605 / EN 10253 – European standards
JIS B2313 – Japanese standard for butt-weld fittings
These standards govern dimensional tolerances, marking, wall thickness, pressure-temperature ratings, and hydrostatic testing.
Applications Across Industries
90 degree elbows are indispensable in sectors including:
Oil & Gas: Refineries, offshore rigs, pipeline networks
Petrochemical Plants: Piping for corrosive fluids and high-pressure environments
Power Plants: Boiler piping, superheater lines, and turbine inlets
Pharmaceuticals: Sanitary grade stainless steel elbows
Food & Beverage Industry: Aseptic piping systems requiring hygienic fittings
Water Treatment: Effluent discharge and distribution lines
Fire Protection Systems: Sprinkler and hydrant networks
HVAC & Plumbing: Distribution of water, steam, and gases in buildings
Key Considerations in Elbow Selection
When choosing a 90 degree elbow for any system, it is crucial to consider:
Pressure & Temperature Rating: As per ASME B31.3 or B31.1 piping codes
Material Compatibility: Chemical composition and corrosion resistance
Dimensional Accuracy: Ensures perfect fit and flow dynamics
Wall Thickness: Impacts pressure handling and lifespan
Flow Efficiency: Long radius elbows offer smoother flow vs short radius
Code Compliance: Required for audit trails and regulatory approval
Inspection and Quality Control
Manufacturers of industrial-grade 90 degree elbows perform stringent testing, including:
Visual and Dimensional Inspection
Hydrostatic Testing
Radiographic (RT) and Ultrasonic Testing (UT)
PMI (Positive Material Identification)
Hardness and Impact Testing
Corrosion Resistance Testing (as per ASTM G48 or G28)
Quality certifications often include EN 10204 3.1/3.2, ISO 9001, PED, and NACE MR0175 compliance.
Conclusion
A 90 degree elbow may seem like a simple fitting, but its role in fluid dynamics, space optimization, and system integrity is immense. From choosing the right material to complying with international codes, every aspect of this component demands attention. Whether you're working on high-pressure petrochemical installations or designing sanitary pipelines, understanding the full technical scope of a 90 degree elbow ensures safety, reliability, and performance.
As industries continue to push for more robust, efficient, and corrosion-resistant systems, the importance of high-quality 90 degree elbows will only grow. By sourcing from certified manufacturers and ensuring adherence to global standards, you can guarantee that your piping systems remain leak-proof, durable, and compliant.
