Projectors are an excellent way to bring cinematic experiences into your home, classroom, or office. But one common problem that frustrates users is when the projected image appears too small. Often, the root cause of this issue is related to projector throw ratio. Understanding throw ratio and how it affects image size is essential to ensure your projector delivers the desired viewing experience. In this guide, we explain why your projector image may appear too small and how to resolve it.
What Is Projector Throw Ratio
Projector throw ratio is the ratio of the distance from the projector lens to the screen divided by the width of the projected image. For example, a throw ratio of 1.5:1 means that for every 1 foot of screen width, the projector must be 1.5 feet away from the screen. Throw ratio determines how large an image a projector can produce from a specific distance. A mismatch between the projector’s throw ratio and your room setup is often the reason why your image appears smaller than expected.
Common Reasons for a Small Projector Image
Incorrect Throw Distance
If your projector is placed too far or too close relative to the recommended throw distance, the image may appear too small. A projector designed for a short throw distance may produce a smaller image when positioned further away from the screen.Mismatched Throw Ratio
Each projector has a fixed or adjustable throw ratio. Using a projector with a high throw ratio in a small room can result in a small image because the projector requires more distance to fill the screen properly.Limited Zoom Settings
Some projectors have limited zoom or no zoom at all. If the projector cannot adjust the lens to increase image size, the throw ratio becomes the limiting factor.Small Screen Width
Sometimes the issue is not the projector but the screen. A small screen combined with a projector’s throw ratio may produce a smaller image than anticipated.Ceiling or Wall Constraints
Physical limitations in the room, such as ceiling height or furniture placement, may force the projector into a position that does not match its ideal throw ratio, resulting in a smaller image.
How to Calculate the Ideal Throw Distance
To ensure your projector produces the correct image size, use the throw ratio formula:
Throw Ratio = Throw Distance ÷ Image Width
Rearranged to find the required throw distance:
Throw Distance = Throw Ratio × Image Width
For example, if your projector has a throw ratio of 1.5:1 and you want a 10-foot wide image:
Throw Distance = 1.5 × 10 = 15 feet
This means your projector should be placed 15 feet from the screen to achieve the desired image size. Placing it closer will reduce image width, making the image appear too small.
Adjusting Throw Ratio to Fix Small Images
Move the Projector
The simplest solution is adjusting the projector’s placement. Moving it further away from the screen can increase image size if the projector supports that distance according to its throw ratio.Use Zoom Lens
Projectors with optical zoom allow you to adjust the throw ratio slightly, increasing image size without changing placement. Always consult your projector’s manual for zoom range capabilities.Switch to a Short Throw Projector
If room size is limited, a short throw projector with a lower throw ratio can produce a larger image from a short distance, solving the problem of a small projected image.Increase Screen Width
In some cases, replacing the screen with a wider one allows the existing throw ratio to produce a larger image. Ensure that your room can accommodate the wider screen without compromising viewing comfort.Check Lens Settings and Focus
Some projectors require proper lens adjustments and focus alignment to achieve the maximum possible image size. Misaligned lenses can reduce effective image dimensions.
Practical Examples
Home Theater: A projector with a throw ratio of 1.2:1 is placed only 8 feet from the wall, but the desired image width is 10 feet. The image will appear smaller than intended because the throw distance is insufficient. Moving the projector to 12 feet will solve the issue.
Classroom Setup: A short throw projector with a throw ratio of 0.8:1 is placed too far from a 7-foot wide screen. The projector produces a smaller image than expected. Adjusting placement closer to the screen increases image size.
Office Conference Room: A standard throw projector with a throw ratio of 1.5:1 is used in a small conference room. The limited room depth results in a small projected image. Switching to a short throw projector with a lower throw ratio produces a larger, more readable image.
Tips to Avoid Small Image Problems
Measure Your Room and Screen: Accurate measurements of available space and desired screen width are critical before purchasing a projector.
Check Throw Ratio Specifications: Always verify the projector’s throw ratio and ensure it is suitable for your room size.
Consider Zoom and Lens Flexibility: Projectors with adjustable zoom and lens shift provide additional flexibility in managing image size.
Account for Obstacles: Ensure no furniture or architectural features interfere with ideal projector placement.

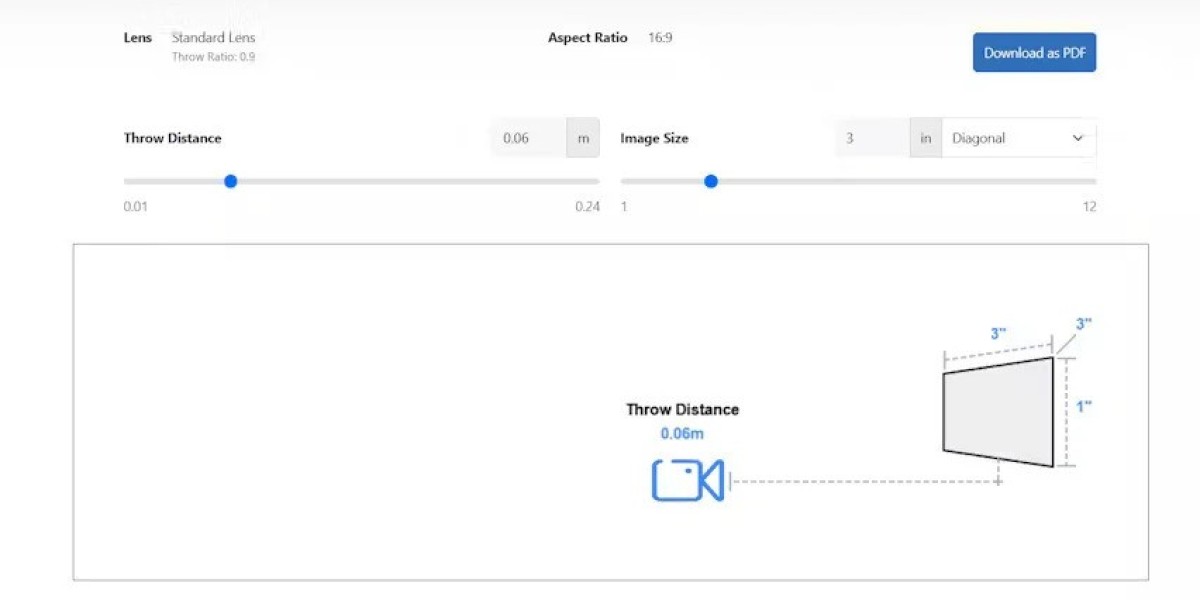

Use Online Calculators: Many projector manufacturers offer throw ratio calculators to help plan placement and screen size effectively.
Conclusion
A projector image appearing too small is often a throw ratio issue rather than a technical defect. Understanding projector throw ratio and how it interacts with room size, screen width, and projector placement is essential to achieve the desired image dimensions. Proper calculations, placement adjustments, or switching to a projector with a suitable throw ratio can resolve most small image problems.
XTEN-AV provides expert advice and tools to help AV professionals, home theater enthusiasts, and educators optimize projector throw ratio and placement. By understanding throw ratio and applying it to your space, you can enjoy bright, large, and perfectly aligned images in any environment.
