In continuous casting operations, the ladle shroud is a critical refractory component used to protect molten steel from atmospheric reoxidation as it flows from the ladle to the tundish. However, many operators overlook a much smaller but equally important part of the system: the ladle shroud gasket.
Despite its simple appearance, the gasket plays a vital role in ensuring a stable, leak-free, and safe casting process.

This article provides a detailed, professional overview of what the ladle shroud gasket is, how it works, and why it is essential for achieving high-quality steel and stable casting performance.

1. What Is a Ladle Shroud Gasket?

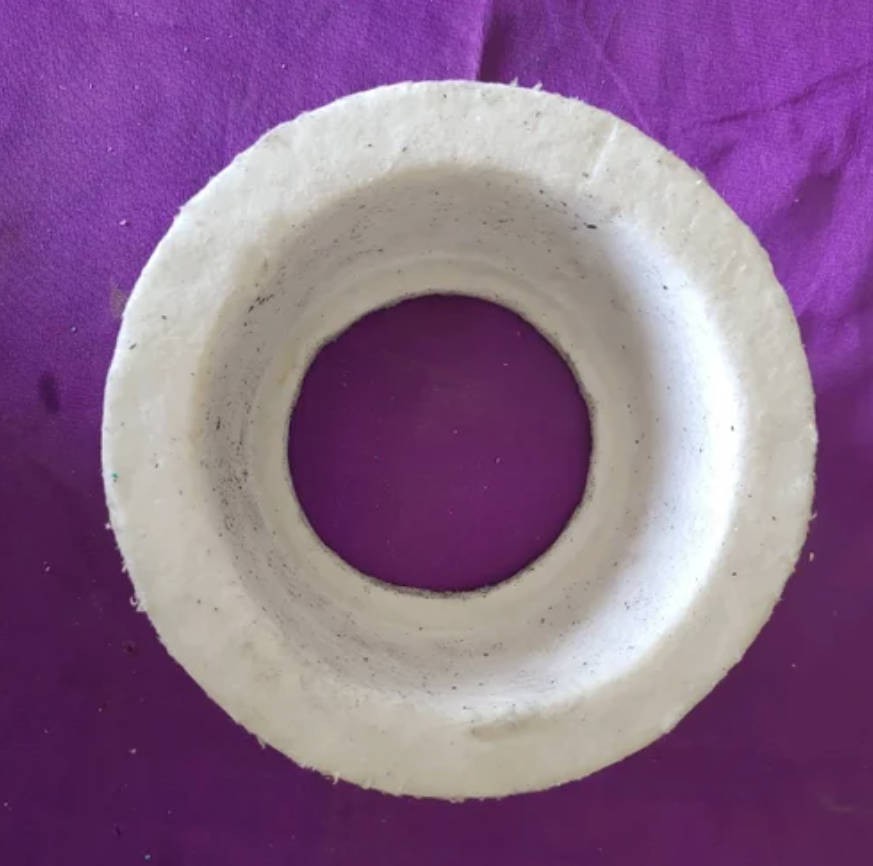

A ladle shroud gasket is a specially designed sealing component placed between the ladle nozzle well block and the ladle shroud connecting plate.
Its primary purpose is to ensure an airtight, secure, and mechanically stable connection when attaching the ladle shroud to the ladle.

In simpler terms, the gasket:

• creates a seal between the ladle and the ladle shroud

• prevents steel leakage during shroud mounting

• protects the joint from thermal and mechanical stresses

• ensures the ladle shroud is aligned and firmly locked in position

Though small and inexpensive, the gasket is a critical safety component because failure at this junction can cause:

• atmospheric reoxidation

• steel leakage

• shroud misalignment

• casting disruption

• safety hazards for personnel

2. Why Is the Gasket Necessary? Technical Function

The ladle shroud gasket provides several important technical functions:

2.1 Sealing Function (Leak Prevention)

When molten steel flows at temperatures above 1550°C, even minor gaps between the ladle and shroud connection can cause:

• steel leakage

• gas aspiration

• turbulent flow

The gasket eliminates these gaps by creating a compressive seal, ensuring the joint remains tight during casting.

2.2 Mitigation of Mechanical Stress

During casting:

• the ladle shroud is pressed against the ladle nozzle

• the system experiences continuous vibration

• mechanical stress increases due to steel flow pressure

The gasket acts as a flexible buffer, absorbing vibration and preventing damage to the refractory surfaces.

2.3 Thermal Compensation

Because the ladle and shroud heat up at different rates, thermal expansion can introduce gaps.

A gasket compensates for these differences by:

• maintaining uniform contact

• preventing crack formation

• improving thermal stability of the joint

2.4 Protection Against Atmospheric Reoxidation

Any gas infiltration near the joint increases the oxygen level in steel flow.

An intact gasket ensures:

• airtight sealing

• minimal exposure to atmosphere

• improved steel cleanliness

This is especially important for aluminum-killed and ultra-low oxygen steels.

3. What Materials Are Used for Ladle Shroud Gaskets?

Gaskets are usually made from high-temperature resistant, flexible, compressible materials.

Common materials include:

3.1 Ceramic Fiber Paper / Board

• Excellent temperature resistance

• Good compressibility

• Economical

• Suitable for most steels

3.2 Graphite-Based Gaskets

• High thermal shock resistance

• Good sealing properties

• Chemical inertness

• Common in high-temperature operations

3.3 Non-Asbestos Fiber Gaskets

• Environmentally friendly

• Good strength and flexibility

• Moderate temperature resistance

3.4 Vermiculite-Reinforced Gaskets

• High mechanical integrity

• Used for long casting sequences

• Superior erosion resistance

4. Shapes and Designs of Ladle Shroud Gaskets

Different shroud manufacturers use different gasket designs depending on the connection mechanism.

4.1 Flat Ring Gasket

• Most common design

• Simple, reliable, and easy to install

4.2 Stepped or Profiled Gasket

• Follows the contour of the nozzle plate

• Enhances sealing capability

• Reduces risk of side leakage

4.3 Double-Layer Gasket

• Used when extremely tight sealing is required

• Improves thermal insulation

4.4 Customized Cut Gaskets

• For special ladle shroud geometries

• Laser-cut or die-cut for precision

5. How the Gasket Is Installed

Proper installation is crucial to gasket performance.

Installation Steps:

1. Clean the ladle nozzle seating surface

2. Align the gasket with the mounting holes

3. Place the gasket evenly without folds

4. Position the ladle shroud mounting plate

5. Apply correct clamping force

Common Installation Mistakes to Avoid:

• Misalignment causing side leakage

• Uneven clamping pressure

• Damaged or torn gasket

• Using low-quality gaskets that degrade quickly

6. Factors Affecting the Life and Performance of the Gasket

6.1 Casting Temperature and Steel Grade

High-alloy steels increase thermal load.

6.2 Shroud Alignment

Misalignment increases mechanical stress on the gasket.

6.3 Gasket Material Quality

Higher-grade materials last significantly longer.

6.4 Installation Conditions

Dust, slag, or dirt reduce sealing efficiency.

6.5 Casting Sequence Length

Long sequences require enhanced gasket strength and thermal resistance.

7. Benefits of Using High-Quality Ladle Shroud Gaskets

Using premium-quality gaskets results in:

• Improved ladle shroud stability

• Better steel cleanliness (lower oxygen pickup)

• Reduced risk of steel leakage

• Longer connection life

• Fewer casting interruptions

• Higher overall safety

In high-precision steelmaking operations—such as automotive, electrical steel, or stainless production—proper gasket selection is essential.

Conclusion

The ladle shroud gasket may be a small component, but its importance in continuous casting cannot be overstated. As the interface between the ladle and ladle shroud, it plays a crucial role in ensuring tight sealing, thermal stability, mechanical integrity, and high steel cleanliness. Proper material choice, correct installation, and alignment are key to achieving a stable and smooth casting process.More information ,please visit Henan Yangyu Refractories Co.,Ltd
