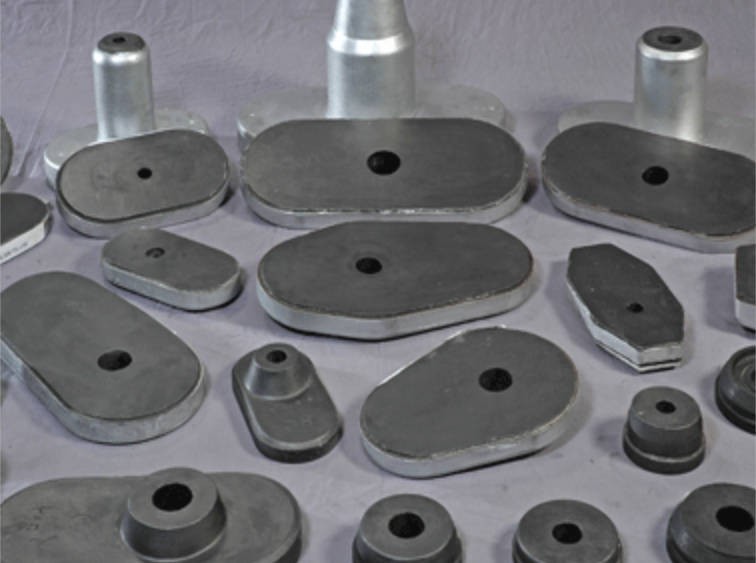

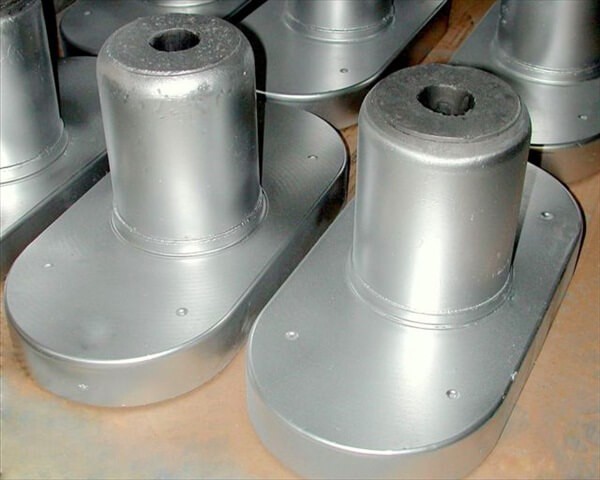

The slide gate plate is one of the most critical functional refractories used in ladles and tundishes during steelmaking. It plays a vital role in controlling molten steel flow, ensuring safety, stabilizing casting operations, and maintaining steel cleanliness. Due to exposure to 1650°C molten steel, chemical corrosion, thermal shock, mechanical abrasion, and sliding friction, slide gate plates experience severe operational stress. Extending their service life is essential for reducing refractory consumption, lowering operational costs, preventing steel leakage, and improving long casting sequence performance.

This article presents a thorough technical guide on how to extend the life of slide gate plates, covering material selection, engineering design, installation practices, operational control, preventive maintenance, and troubleshooting of common failure modes.

1. Understanding the Mechanisms That Limit Slide Gate Plate Life

Before exploring life-extension strategies, it is critical to understand why slide gate plates deteriorate. The main factors include:

1.1 Thermal Shock Damage

When exposed to sudden temperature changes (room temperature → 1,600°C), microcracks form in the refractory, reducing strength.

1.2 Mechanical Abrasion

Constant sliding generates friction between upper and lower plates, causing wear of the contact surfaces.

1.3 Chemical Corrosion

Molten steel, deoxidation products (Al₂O₃), and slag infiltrate into the pores of the plate, causing degradation.

1.4 Carbon Oxidation

Oxygen reacts with carbon in the plate, weakening the matrix and causing structural breakdown.

1.5 Erosion from High-Speed Steel Flow

Improper casting rhythm increases turbulence and accelerates erosion around the flow port.

1.6 Clamping Pressure Issues

Incorrect hydraulic clamping pressure can lead to plate cracking or metal leakage between plates.

Understanding these mechanisms allows us to develop effective strategies to maximize plate longevity.

2. Material Selection: The First Step Toward Long Plate Life

2.1 Choose the Right Refractory Composition

Different steel and slag conditions require different plate materials:

Choosing a material that matches your operation reduces erosion and greatly extends plate life.

2.2 Select Plates With High Density and Low Porosity

High-density plates:

• Resist steel and slag penetration

• Reduce oxidation

• Ensure stronger mechanical performance

Ideal porosity: <10%
Bulk density: >2.95 g/cm³ (for alumina-carbon plates)

2.3 Use Plates With Anti-Oxidation Additives

Anti-oxidants such as SiC, B₄C, Al, Mg, Si powders form protective layers that slow carbon oxidation.

2.4 Reinforced Zirconia Zones

Zirconia around the flow port significantly increases erosion resistance.
Many modern plates apply a ZrO₂ ring or ZrO₂ gradient zone.

3. Engineering and Processing Improvements

3.1 Isostatic Pressing

Isostatic pressing produces:

• Uniform density

• Lower porosity

• Higher mechanical strength

This results in plates that survive more cycles.

3.2 Controlled Firing and Curing

Proper firing ensures:

• Stable microstructure

• Good bonding between aggregates

• Reduced internal tensions

Underfired plates crack more easily under thermal shock.

3.3 Optimized Carbon Matrix

Using high-purity flake graphite and high-performance binders increases:

• Thermal shock resistance

• Sliding stability

• Oxidation resistance

4. Installation Practices to Maximize Plate Life

Even the best slide gate plates fail prematurely if installed incorrectly.

4.1 Ensure Perfect Flatness of the Plates

Flatness should be checked with:

• Feeler gauge

• Straightedge

• Plate surface comparator

Surface irregularities create localized pressure points that lead to cracking.

4.2 Clean All Contact Surfaces

Before installation:

• Remove dust, graphite powder, moisture, slag, and oil

• Clean nozzle block surfaces

• Clean sliding frame

Contaminants cause friction, uneven pressure, and poor sealing.

4.3 Apply Correct Hydraulic Clamping Pressure

If clamping pressure is too low → leakage
If clamping pressure is too high → plate cracking

Manufacturers typically recommend 65–120 kN, depending on the system.

Check and calibrate hydraulic pressure regularly.

4.4 Proper Alignment of the Plates

Misalignment leads to:

• Uneven wear

• Sliding resistance

• Stress concentration

• Early plate failure

Use alignment tools and reference marks to guarantee proper positioning.

4.5 Preheat the Plate Assembly

Preheating reduces thermal shock and prevents crack formation.

Typical preheating conditions:

• 400–600°C

• 20–40 minutes

Never expose cold plates to full-temperature steel.

5. Operational Strategies to Extend Slide Gate Plate Life

5.1 Control Steel Temperature

Too high temperatures accelerate:

• Chemical erosion

• Slag attack

• Oxidation

• Abrasion

Ideal tundish temperature should be controlled within recommended operating windows.

5.2 Avoid Sudden Opening of the Slide Gate

A smooth opening sequence reduces thermal and mechanical shock:

• From 0% → 10% → 20% → 30%

• Hold and stabilize before full opening

Abrupt opening increases turbulence and damages the plate.

5.3 Stabilize Casting Rhythm

Frequent adjustments increase wear.
Stable flow improves plate longevity.

5.4 Maintain Proper Inert Gas (Argon/N₂) Injection

Inert gas protects plates from:

• Nozzle clogging

• Oxidation

• Solidification of steel droplets

• Excessive erosion

But note:

• Too high gas flow → turbulence and reoxidation

• Too low gas flow → steel freezing and plate jamming

Optimize according to steel grade.

5.5 Reduce Mechanical Vibration

Sources of harmful vibration include:

• Ladle shroud manipulator

• Cracked frame

• Loose clamps

• Aggressive movement

Vibration causes microcracks that shorten plate life.

5.6 Avoid Slag Carryover From Ladle

Slag penetrating the slide gate system accelerates corrosion.
Use:

• Slag detection systems

• Slag-stopping darts

• Gas curtain technology

6. Cooling, Maintenance, and Post-Casting Procedures

6.1 Controlled Cooling After Casting

Avoid rapid cooling or water contact.
Thermal shock could destroy plates.

6.2 Inspect Plates After Every Heat

Check for:

• Cracks

• Uneven wear

• Erosion around the port

• Chemical penetration

• Oxidation patterns

This helps diagnose systemic issues.

6.3 Clean the Slide Gate Frame

Remove:

• Slag deposits

• Steel droplets

• Dust

• Carbon residue

A clean slide gate mechanism ensures smooth movement.

6.4 Lubricate Moving Components (If Required)

Some slide gate designs allow lubrication of mechanical parts (not plates themselves).
This reduces friction and prevents jamming.

6.5 Regular Calibration of Hydraulic System

A malfunctioning cylinder increases stress on slide plates.
Inspect:

• Pressure settings

• Connection joints

• Cylinder seals

• Hydraulic oil level

7. Troubleshooting Common Slide Plate Problems

Problem 1: Premature Cracking

Causes:

• Thermal shock

• Excessive clamping pressure

• Cold charging

• Vibration

Solutions:

• Preheat

• Calibrate hydraulic pressure

• Improve mechanical stability

Problem 2: Severe Port Erosion

Causes:

• High steel temperature

• Misaligned shroud

• Turbulent flow

Solutions:

• Stabilize casting

• Use ZrO₂-enriched plates

Problem 3: Steel Leakage

Causes:

• Irregular plate surface

• Debris between plates

• Low clamping pressure

Solutions:

• Clean installation

• Increase hydraulic force

• Replace damaged plates

8. Conclusion

Extending the life of slide gate plates is not achieved through a single action—it requires optimization of material selection, manufacturing quality, installation precision, operational stability, and post-casting maintenance. By following the comprehensive strategies highlighted in this article, steel plants can achieve:

• Longer plate life

• Lower refractory costs

• Improved steel cleanliness

• Fewer casting interruptions

• Higher productivity

• Safer operations

With the right combination of technical practices, slide gate plate life can be increased significantly—sometimes by 30–100% depending on operating conditions.
